Horizontal Autoclave Cylindrical Mild Steel

Specifications

• Type: Horizontal Cylindrical Autoclave
• Chamber Size: Customizable (400 mm to 1500 mm dia)
• Chamber Thickness: 6–12 mm Mild Steel
• Outer Size: Customizable as per requirement
• Compressed Air: 6–8 kg/cm²
• Door Type: Horizontal Sliding / Manual Lock

Pressure & Temperature

• Design Pressure: 2.2 kg/cm²
• Working Pressure: 1.2–1.5 kg/cm²
• Design Temperature: 137°C
• Working Temperature: Up to 134°C
• Sterilizing Temperature: 121°C–134°C
• Sterilization Time: 0–999 minutes (adjustable)
• Temperature Scope: Room temperature to 134°C
• Heat Uniformity: ±2°C throughout chamber

Construction & Build

• Insulation: Glass Wool / Ceramic Fiber
• Net Weight: Approx. 500–1500 kg (depending on size)
• Chamber Material: Mild Steel with epoxy coating
• Finish: Durable and corrosion-resistant

System Features

• Recording Parameters: Temperature, Pressure, Cycle Time
• Spraying Mode: Uniform multidirectional spray
• Spraying Piping: 316 Grade Stainless Steel
• Piping System: Stainless Steel, rust-proof
• Steam: Direct / Indirect steam supply
• Sterilization Method: Steam / Water Spray

Components

• Outer Trolley: Provided with unit
• Inner Trolley: Removable SS304 grade
• Valves: Automatic & Manual safety valves included
• Controller: Automatic PLC-based digital control
• Display: LED / LCD digital display
• Safety Features: Pressure switch, emergency release, over-temperature protection

Power & Installation

• Power Supply: 220V / 380V / 415V AC, 50/60 Hz
• Power Consumption: Depends on model & size
• Mounting: Floor-mounted
• End Connection: Flanged / bolted as per requirement

Applications

• Medical and hospital sterilization
• Pharmaceutical industries
• Laboratories and research facilities
• Industrial sterilization processes

Product Description

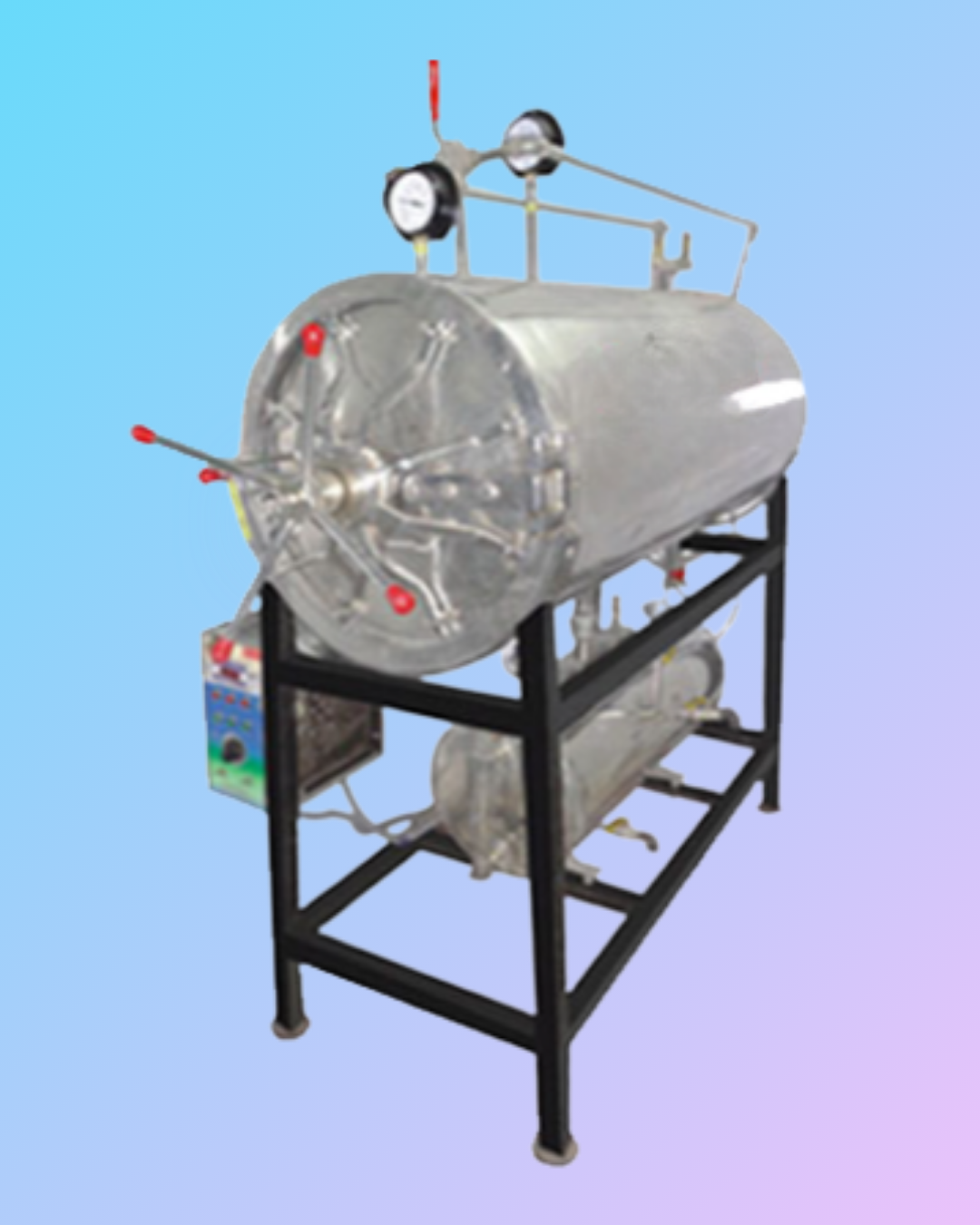

Horizontal Autoclave Cylindrical Mild Steel is a high-capacity sterilization system designed for hospitals, laboratories, and industrial applications. Built with a robust mild steel chamber and advanced control systems, it ensures reliable and efficient sterilization performance.

This autoclave features customizable chamber sizes, precise temperature and pressure control, and uniform heat distribution. Its PLC-based automation system allows seamless operation and monitoring, making it ideal for high-demand sterilization tasks.

With advanced safety features and durable construction, it delivers consistent results while maintaining high hygiene standards. It is a dependable solution for professional environments requiring large-scale sterilization.

Key Features

• Customizable chamber size for flexible applications
• PLC-based automatic control system
• Uniform heat distribution (±2°C accuracy)
• High-capacity industrial-grade design
• Advanced safety and monitoring features
• Suitable for medical, pharmaceutical, and industrial use



  Horizontal Autoclave Cylindrical Mild Steel

  Secure Shipping & Delivery

  Orders are processed using secure and reliable shipping methods to ensure safe and timely delivery. Each unit is carefully packaged to prevent damage during transit and is shipped with proper documentation.

  Delivery timelines depend on order quantity and location. Domestic and export orders are handled efficiently, ensuring prompt dispatch and customer satisfaction.

  ---

  Key Benefits

  • Secure packaging for safe transportation
  • Reliable domestic and international delivery
  • Efficient order processing and dispatch
  • Strong logistics support network

  ---

  FAQs

  Q: How does the MAS AUHO 101 ensure uniform sterilization throughout the chamber?
  A: It utilizes a sophisticated spraying system combined with PLC controls to maintain consistent temperature and pressure, ensuring uniform sterilization.

  Q: What control systems are incorporated for convenience and safety?
  A: It features automated PLC-based digital control systems with LED/LCD displays, along with safety features like pressure switches, emergency release, and over-temperature protection.

  Q: Where can the MAS AUHO 101 be installed, and is customization available?
  A: It is suitable for hospitals, pharmaceutical industries, and laboratories. Customization options are available based on specific requirements.

  Q: What is the typical usage and benefit of this autoclave in professional settings?
  A: It is ideal for sterilizing medical tools, pharmaceutical instruments, and laboratory materials, offering precision, efficiency, and consistent sterilization results.

  Q: How does the ordering and delivery process work for this equipment in India?
  A: Orders are confirmed with clear communication and securely packaged for dispatch. Delivery timelines may vary based on location, with priority given to fast and efficient fulfillment.

  Medsor Impex provides premium-quality Horizontal Autoclave Cylindrical Mild Steel Sterilizers designed for reliable steam sterilization in hospitals, clinics, laboratories, research centers, pharmaceutical facilities and healthcare institutions. Engineered for professional sterilization applications, this autoclave ensures effective sterilization of surgical instruments, laboratory glassware, dressings, culture media and medical equipment.

  The cylindrical chamber design promotes uniform steam circulation and efficient heat distribution throughout the sterilization cycle, ensuring consistent and dependable sterilization performance. Constructed with a robust mild steel outer body, the autoclave offers structural strength, durability and long-lasting operation in demanding environments.

  Its horizontal loading design allows convenient handling of sterilization materials and efficient chamber utilization, making it suitable for medium to high-volume sterilization requirements. The steam sterilization system is designed to maintain reliable temperature and pressure conditions for effective sterilization results.

  Ideal for hospitals, laboratories, educational institutions, diagnostic centers and industrial healthcare applications, the Horizontal Autoclave Cylindrical Mild Steel model delivers dependable performance, easy operation and excellent operational efficiency.
