Non-Vacuum Table Top Steam Sterilizer for Clinics & Laboratories | Medsor Impex

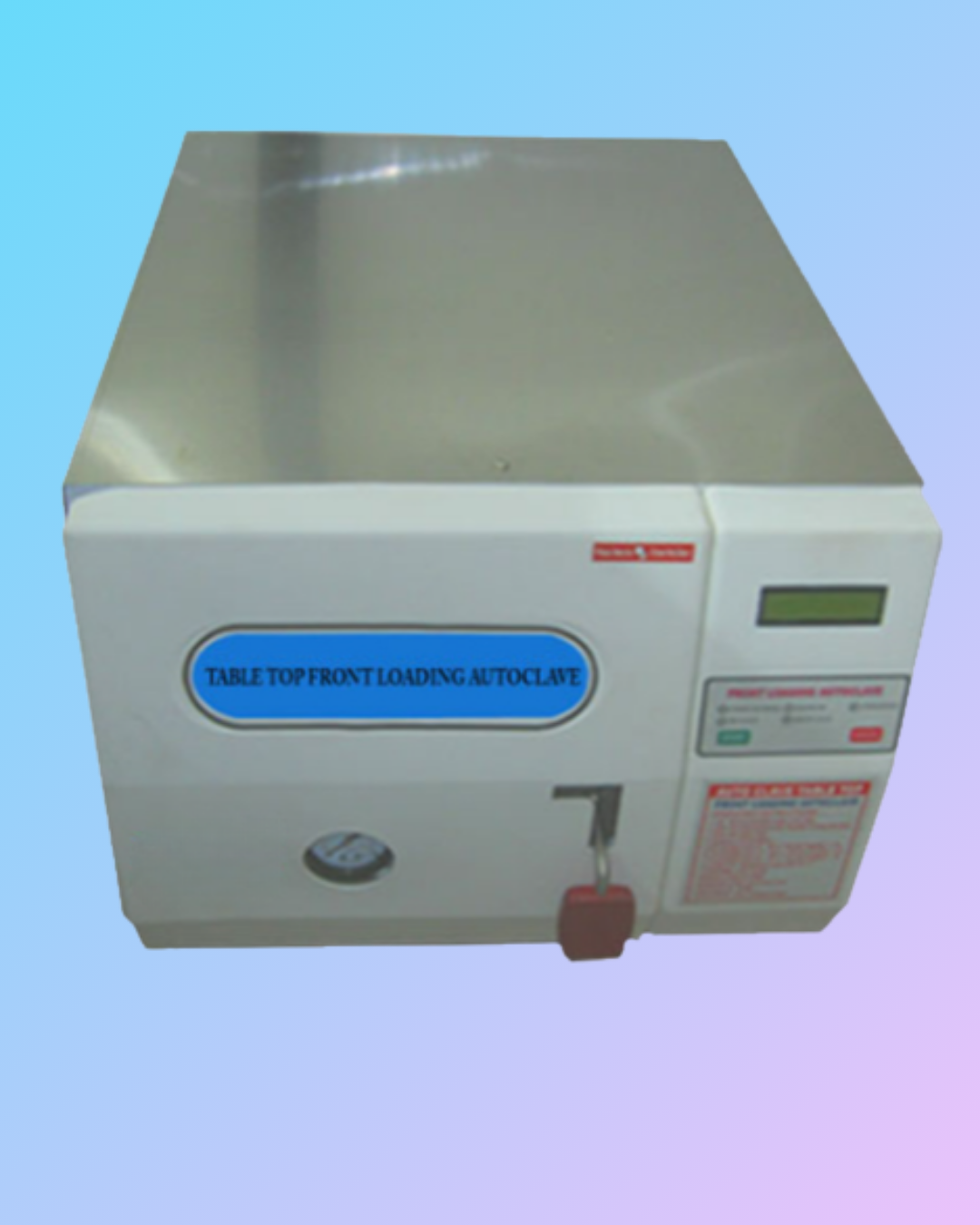

Table Top Autoclave Without Vacuum

Specifications

• Type: Table Top Autoclave Without Vacuum
• Chamber Size: 300 mm (Dia) × 550 mm (Length)
• Chamber Thickness: 4 mm (Stainless Steel)
• Outer Size: 550 × 410 × 410 mm
• Door Type: Radial Locking Door

Pressure & Temperature

• Design Pressure: 2.2 kg/cm²
• Working Pressure: 1.2 kg/cm²
• Design Temperature: 134°C
• Working Temperature: 121°C–134°C
• Sterilizing Temperature: 121°C
• Sterilization Time: 0–60 minutes (adjustable)
• Temperature Scope: Up to 134°C
• Heat Uniformity: Uniform heating with side heaters

Construction & Build

• Material: Stainless Steel 304 (Inner & Outer)
• Insulation: Double-walled with mineral wool
• Net Weight: Approx. 50 kg
• Finish: Durable and corrosion-resistant

System Features

• Steam Generation: Built-in electric steam generator
• Recording Parameters: Analog pressure & temperature gauge
• Piping System: Stainless Steel
• Valves: Safety Valve, Steam Release Valve
• Power Consumption: 2–3 kW

Controls & Safety

• Control System: Microprocessor-based PID controller with digital display
• Alarm System: Audio/visual cycle end alarm
• Safety Features: Pressure safety lock, automatic pressure cut-off
• Gasket: Silicone rubber gasket for leak-proof sealing
• Heater Location: Side-mounted

Additional Features

• Usable Volume: ~39 liters
• Water Level Indicator: Provided

Applications

• Hospitals and clinics
• Laboratories and research facilities
• Dental and medical sterilization
• Instrument and equipment sterilization

Product Description

Table Top Autoclave Without Vacuum is a compact and efficient sterilization solution designed for hospitals, clinics, and laboratories. Built with high-quality stainless steel and advanced insulation, it ensures durability and consistent performance.

Equipped with a microprocessor-based control system and digital display, this autoclave allows precise temperature and pressure control for effective sterilization. Its built-in steam generator and uniform heating system ensure reliable and consistent results.

Designed for ease of use and safety, it includes multiple safety features such as pressure locks, automatic cut-off systems, and alarm notifications. Compact in size yet powerful in performance, it is ideal for small to medium-scale sterilization needs.

Key Features

• Compact table-top design
• Built-in electric steam generator
• Microprocessor-based control system
• Uniform heat distribution
• Adjustable sterilization time and temperature
• Advanced safety features

FAQs

Q: What type of sterilization does this autoclave provide?
A: It uses steam-based sterilization without vacuum for effective cleaning of instruments.

Q: What is the capacity of this autoclave?
A: It has an approximate usable volume of 39 liters.

Q: Is this autoclave suitable for clinics and laboratories?
A: Yes, it is ideal for hospitals, clinics, dental setups, and laboratories.

Q: What safety features are included?
A: It includes pressure safety locks, automatic pressure cut-off, and alarm systems.

Q: How is the temperature controlled?
A: It uses a microprocessor-based PID controller with a digital display for precise control.

Medsor Impex provides premium-quality Table Top Autoclaves Without Vacuum designed for reliable steam sterilization in hospitals, clinics, dental practices, laboratories, diagnostic centers and healthcare facilities. Engineered for routine sterilization applications, this compact autoclave offers efficient processing of surgical instruments, laboratory equipment, dental tools and healthcare supplies.

The non-vacuum sterilization system utilizes steam under controlled temperature and pressure conditions to achieve effective sterilization performance. Its tabletop design saves space while providing convenient operation, making it ideal for facilities with limited workspace requirements.

Manufactured using high-quality stainless steel components, the autoclave offers durability, corrosion resistance and long-term reliability. The user-friendly control system ensures easy operation and monitoring, while the compact design supports efficient instrument sterilization for daily healthcare and laboratory use.

Ideal for hospitals, dental clinics, pathology laboratories, research centers and medical institutions, the Table Top Autoclave Without Vacuum delivers dependable sterilization performance, easy maintenance and operational convenience.
