Single Wall Semi Automatic Vertical Autoclave | Medsor Impex

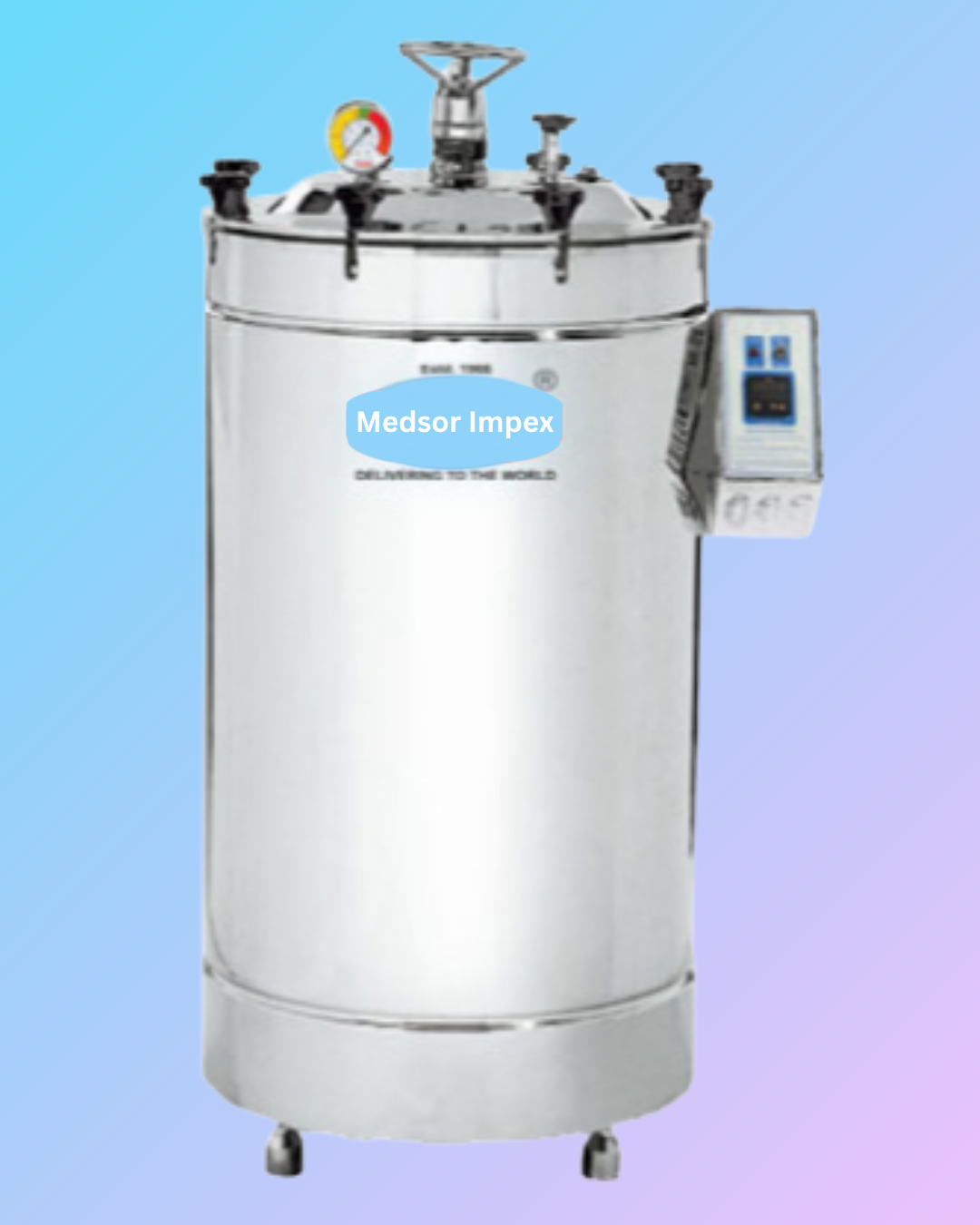

Vertical Autoclave Single Wall Semi Automatic

Specifications

• Type: Vertical, Single Wall, Semi-Automatic
• Chamber Size: 22 L / 35 L / 50 L / 78 L / 100 L (Customizable options)
• Chamber Thickness: 3–4 mm (Stainless Steel 304 Grade)
• Outer Size: Customizable as per order
• Compressed Air: Required as per standard

Design & Construction

• Door Type: Radial Locking System (Manual)
• Design Pressure: 2.2 kg/cm²
• Working Pressure: 1.2–1.5 kg/cm²
• Design Temperature: Up to 134°C
• Heat Uniformity: 2°C throughout chamber
• Insulation: Mineral Wool / Glass Wool
• Net Weight: Approx. 80–160 kg (varies by size)
• Chamber Material: Stainless Steel 304/316
• Stand: Mild Steel or Stainless Steel (optional)
• Finish: Durable and corrosion-resistant

Operating Features

• Sterilizing Temperature: 121°C–134°C
• Sterilization Time: 0–60 minutes (adjustable)
• Temperature Range: Ambient to 134°C
• Steam Generation: External or inbuilt system
• Pressure Gauge: Provided (Analog)
• Display: Digital temperature indicator
• Controller: Semi-Automatic (Timer with manual controls)

System Components

• Piping System: Seamless stainless steel
• Valves: Safety Valve, Exhaust Valve, Release Valve
• Drain Valve: Stainless Steel (Manual)
• Heater Element: Heavy-duty nickel plated copper
• Gasket: Silicone / Neoprene (Heat resistant)
• Power Consumption: 2–6 kW (depending on size)
• Power Supply: 220V / 380V (as required)

Additional Features

• Outer Trolley: Not included
• Inner Trolley: Not included
• Recording Parameters: Optional digital/analog output

Applications

• Hospitals and healthcare facilities
• Laboratories and research centers
• Medical colleges and universities
• Industrial sterilization applications

Product Description

Vertical Autoclave Single Wall Semi Automatic is a reliable and efficient sterilization solution designed for medical, laboratory, and industrial use. Built with high-quality stainless steel, it ensures durability, corrosion resistance, and long-term performance.

This autoclave features a semi-automatic control system with adjustable timers and precise temperature settings, allowing efficient sterilization of instruments, glassware, and equipment. Its radial locking system ensures safe and secure operation.

With customizable capacity options and robust construction, it is suitable for various applications, offering consistent sterilization performance. Designed for ease of use and reliability, this autoclave is an ideal choice for professional environments requiring high hygiene standards.

Key Features

• Semi-automatic operation with timer control
• Stainless steel construction (SS 304/316)
• Adjustable sterilization time and temperature
• Uniform heat distribution
• Heavy-duty heating system
• Safe radial locking mechanism



  Vertical Autoclave Single Wall Semi Automatic

  Versatile Sterilization for Laboratories

  The MAS AUVE 101 Vertical Autoclave Single Wall Semi Automatic is designed to meet the sterilization needs of laboratories, hospitals, research institutes, and industrial facilities. It efficiently sterilizes medical instruments, laboratory glassware, and reusable equipment.

  Engineered for both routine and specialized applications, this autoclave delivers consistent and reliable performance, making it an ideal solution for maintaining hygiene and safety standards in professional environments.

  ---

  Reliable Delivery & Strong Supply Network

  With a robust logistics network, the MAS AUVE 101 ensures efficient delivery across domestic and international markets. Products are securely packaged to prevent damage during transit and are delivered promptly to meet urgent requirements.

  The streamlined ordering process ensures smooth transactions, timely dispatch, and dependable service for customers worldwide.

  ---

  Key Benefits

  • Reliable and uniform sterilization performance
  • Suitable for laboratory, hospital, and industrial use
  • Durable construction for long-term use
  • Efficient delivery and strong supply support
  • Easy installation and operation

  ---

  FAQs

  Q: How does the MAS AUVE 101 ensure uniform heat distribution during sterilization?
  A: It uses advanced heat distribution mechanisms to maintain consistent temperatures, ensuring effective sterilization.

  Q: What are the main applications of this autoclave?
  A: It is used for sterilizing laboratory glassware, growth media, instruments, and medical equipment.

  Q: Where should the autoclave be installed for best performance?
  A: It should be installed in well-ventilated environments with proper electrical supply and drainage facilities.

  Q: What are the process settings available on this autoclave?
  A: It offers adjustable temperature settings up to 134°C and timer controls up to 60 minutes for precise sterilization.

  Q: When can I expect delivery after placing an order?
  A: Delivery timelines depend on order size and location, but orders are processed and shipped efficiently.

  Medsor Impex provides premium-quality Vertical Autoclave Single Wall Semi Automatic Sterilizers designed for reliable steam sterilization in hospitals, clinics, laboratories, diagnostic centers, educational institutions and healthcare facilities. Engineered for professional sterilization applications, this autoclave ensures effective sterilization of surgical instruments, laboratory glassware, dressings, culture media and medical equipment.

  The single wall construction offers a compact and cost-effective sterilization solution, while the semi automatic operation ensures ease of use and efficient control of sterilization processes. Designed for consistent performance, the autoclave utilizes steam under pressure to achieve reliable sterilization results for routine healthcare and laboratory requirements.

  Manufactured using high-quality materials, the autoclave offers durability, dependable operation and easy maintenance. Its vertical chamber design optimizes floor space and allows convenient loading and unloading of sterilization materials, making it suitable for daily sterilization tasks.

  Ideal for hospitals, laboratories, research facilities, nursing homes and healthcare institutions, the Vertical Autoclave Single Wall Semi Automatic model delivers efficient sterilization performance, operational reliability and long service life.
