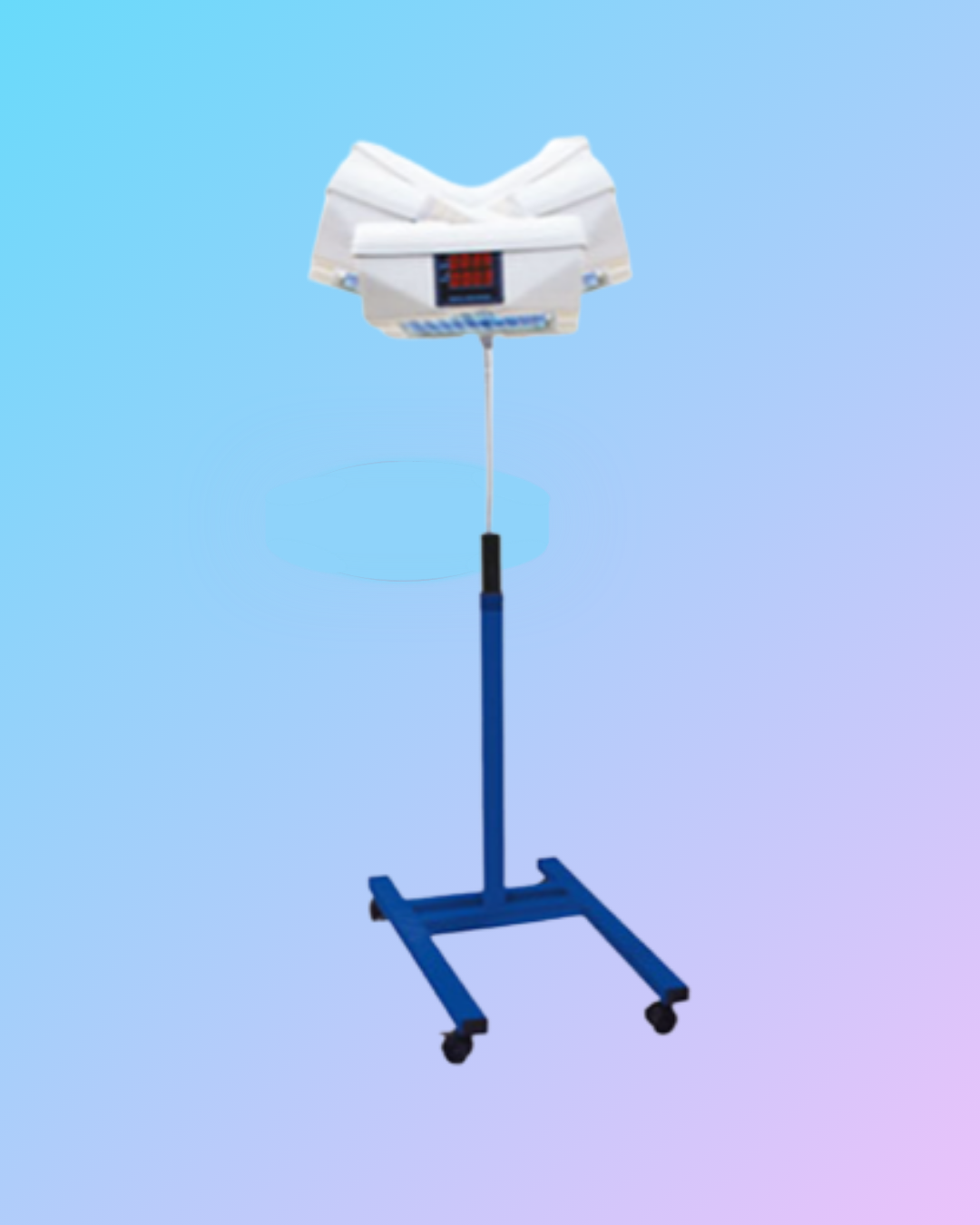

MBC BCPU 101 Overhead Phototherapy Unit CFL

Specifications

• Frequency: 50 Hz
• Use: Infant Phototherapy
• Material: Mild Steel and ABS Plastic
• Properties: Adjustable Height, Sturdy Stand, Mobile Base
• Display Type: Digital
• Weight: Approx. 16 kg
• Power: 40 W
• Automation Grade: Semi-Automatic
• Application: Neonatal Jaundice Treatment

Performance & Features

• Height Adjustment: Adjustable from 120 cm to 180 cm
• Treatment Type: Bilirubin Phototherapy
• Accuracy: Display Timer Accuracy – 1 Minute
• Suitable For: Newborn (Infants)
• Product Type: Overhead Phototherapy Unit
• Temperature Range: 15°C to 30°C (Operating)
• Phase: Single Phase
• Humidity Range: 15%–80% RH (Non-condensing)

Design & Build

• Shape: Rectangular
• Color: White and Blue
• Dimensions (L × W × H): 420 mm × 350 mm × 810 mm
• Voltage: 220V AC
• Display: Digital Timer
• Power Source: AC Mains
• Handle: Yes (for easy maneuverability)
• Caster Wheels: Yes (with brakes for mobility)

Lighting & System Features

• Lamp Type: CFL (Compact Fluorescent Lamp)
• Lamp Life: 5000 hours (typical)
• Number of Lamps: 4 tubes
• Cooling System: Passive air cooling design
• Head Adjustment: Adjustable for precise light positioning
• Fuse Protection: Provided

Safety & Performance

• Noise Level: Silent operation (< 40 dBA)
• Safety Features: Overheat protection, electric shock protection
• Irradiance Level: Greater than 35 µW/cm²/nm at 45 cm

Product Description

The MBC BCPU 101 Overhead Phototherapy Unit CFL is an advanced medical device designed for the effective treatment of neonatal jaundice. Built with a combination of mild steel and ABS plastic, it ensures durability, stability, and ease of use.

Equipped with four high-performance CFL lamps, the unit provides optimal light intensity for bilirubin reduction. Its adjustable height and flexible head positioning allow precise targeting, ensuring effective and safe therapy for newborns.

The unit features a digital timer for accurate monitoring, a mobile base with caster wheels for easy movement, and multiple safety mechanisms to ensure reliable operation. Designed for hospitals and neonatal care units, it offers consistent performance and patient safety.

Key Features

• Designed for neonatal jaundice treatment
• Adjustable height and flexible head positioning
• Digital timer with accurate monitoring
• Mobile base with caster wheels
• Durable and lightweight construction
• Safe and silent operation

Applications

• Neonatal intensive care units (NICU)
• Hospitals and maternity centers
• Pediatric care facilities
• Infant phototherapy treatment


  Product Overview

  The MBC BCPU 101 Overhead Phototherapy Unit CFL is a specialized medical device designed for the effective treatment of neonatal jaundice. It delivers controlled phototherapy using advanced CFL lighting, ensuring safe and efficient bilirubin reduction in newborns.

  Built with a durable and lightweight structure, this unit is suitable for continuous use in neonatal care units. It provides reliable performance and consistent results, making it an essential solution for hospitals and pediatric healthcare facilities.

  ---

  Secure Packaging & Reliable Delivery

  Each unit is securely packaged using high-quality materials to prevent damage during transportation. Orders are processed efficiently with timely dispatch, ensuring quick delivery for both domestic and international clients.

  With a well-established logistics network, the product reaches healthcare facilities in optimal condition, ready for immediate use.

  ---

  Key Benefits

  • Effective treatment for neonatal jaundice
  • Consistent and reliable phototherapy performance
  • Durable and lightweight design
  • Safe and secure packaging for delivery
  • Suitable for continuous hospital use

  ---

  FAQs

  Q: How does the MBC BCPU 101 Overhead Phototherapy Unit benefit neonatal jaundice treatment?
  A: It provides dominant irradiance levels above 35 µW/cm²/nm at 45 cm, ensuring effective bilirubin breakdown and faster recovery.

  Q: What advanced safety features are included in this phototherapy unit?
  A: It includes overheat protection, electric shock protection, and fuse protection for safe and reliable operation.

  Q: Where can the MBC BCPU 101 be most effectively used?
  A: It is ideal for hospitals, clinics, and neonatal care centers where jaundice treatment is required.

  Q: What is the process for adjusting the unit’s height and head position?
  A: It features adjustable height (120–180 cm) and an articulated head for precise light positioning.

  Q: When should the lamps be replaced in the phototherapy unit?
  A: Lamps should typically be replaced after approximately 5000 hours of use or when irradiance levels fall below recommended limits.






  Medsor Impex MBC BCPU 101 Overhead Phototherapy Unit CFL is designed for effective neonatal jaundice treatment in hospitals, NICUs, maternity wards and pediatric healthcare facilities. The unit delivers controlled phototherapy irradiation to support bilirubin reduction in newborns while ensuring safe and efficient neonatal care. :contentReference[oaicite:0]{index=0}

  The MBC BCPU 101 features high-performance CFL lamps that provide therapeutic blue light for phototherapy treatment. Its adjustable height mechanism and flexible positioning system help healthcare professionals optimize light exposure during neonatal care procedures. The unit also includes a digital timer for accurate therapy monitoring and a mobile base with caster wheels for convenient movement within clinical environments. :contentReference[oaicite:1]{index=1}

  Manufactured using durable mild steel and ABS plastic construction, the phototherapy unit is designed for long-term hospital use. Built-in safety mechanisms, corrosion-resistant structure and reliable performance make it suitable for continuous neonatal treatment applications in demanding healthcare settings. :contentReference[oaicite:2]{index=2}
