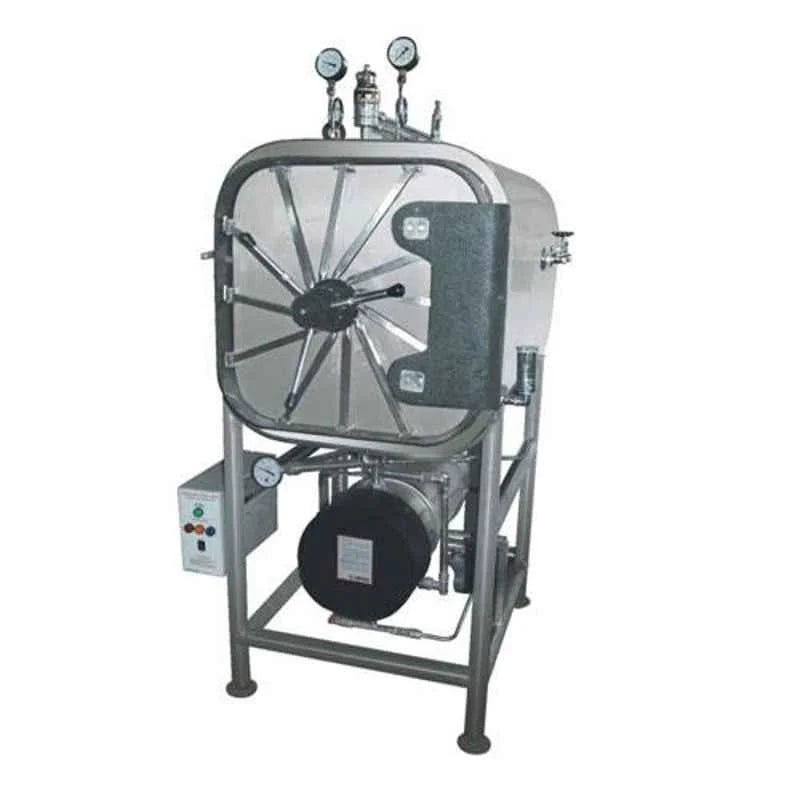

Rectangular Horizontal Autoclave Triple Wall

Rectangular Autoclave
Rectangular Horizontal Autoclave Triple Wall
Size/Capacity: 190ltr 850ftr
The sterilizer is based on the principle that microbiological action of saturated steam at elevated temperature is rapid and through. All models work on principle of downward displacement of air which is most economical method of obtaining sterilization.
Construction:
Triple Walled with Steam Storage, Inner Chamber, Outer Wall, Lid and Ring are made of 5.5. 304 grade material with leak proof argon welding. Autoclave is mounted on Stainless Steel frame with ground leveling screwed flages.
Equipped With:
The Pressure Control Device, Digital Temperature Controller with Digital Timer & Alarm Low Water Cut off Device, Multiport Valve etc. Is incorporated.
Operation Temp & Pressure:
Sterilizing Temp: 121 to 134 C
Sterilizing Pressure: 1.2 to 1.5 Kg/cm (15 psi-30 psi)
Power: Suitable to operate on 440V, 3Ph, 50 Hz, AC Supply
